| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | PE bag+carton |
| Delivery Period: | 5-10days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 10000pcs/month |

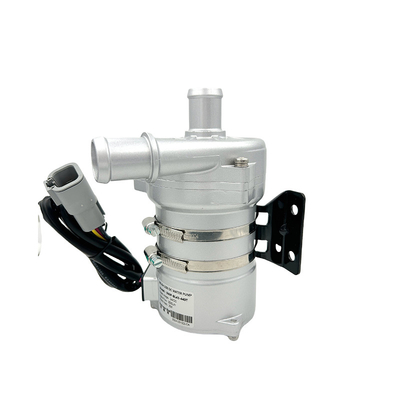

■ Electrical parameter of this coolant pump
Working voltage(VDC):18-32V(24V)
Rate power:400W
Rate flow: Q=3000L/H,H=20M
Dimensions(mm):193*90*159.5
Weight(g):2200g
Features
◆Centrifugal pump
◆coolant pump
◆Magnetic force transmission
◆High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆With wide range operating temperature
◆PWM signal speed controlling
◆Diagnostic signal output
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection
■ Driving device (Including motor)
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor: brushless DC motor
Motor wire frame :PPA GF
Coolant pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating.
Bracket: steel
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1 (matched Plug AMP282088-1)
Nozzle diameter:25mm (1 inch)
■ Technical description (related parts in contact with the liquid)
Pump head housing: Die casting aluminum alloys
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
EMC: Grade 3
Noise:≤61dB
■ System pressure of OWP-BL43-426T automotive water pump
-0.2 to 2.5 bar (100℃ (212°F).
This automotive water pump's service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient ttemperature.
■ Voltage range OWP-BL43-440T automotive water pump
Rated 24V water pump, workable range 18V - 32V
Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be
exposed to thermal radiation ambient.
Medium liquid: liquid mixture (Water with below 60% glycol)
■ Temperature parameter
Medium liquid temperature:-40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature:-40℃ to +120℃ (-40°F to +248°F)
Storage temperatur:-40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
Parameter
■ Performance parameter of OWP-BL43-440T automotive water pump
Overall size
Video
|
|
