JY14M N Channel Enhancement Mode Power MOSFET 40V/200A For Power Switching

JY14M

N Channel Enhancement Mode Power MOSFET

General Description

Incorporating state-of-the-art trench processing techniques, the JY14M power field transistor operates with high cell density, resulting in reduced on-resistance and boasting a high repetitive avalanche rating. This unique combination makes it an exceptional device that offers both efficiency and reliability, suitable for various applications, particularly power switching applications.

Featuring a voltage rating of 40V and a current rating of 200A, the JY14M delivers excellent performance capabilities. It showcases a low on-resistance (RDS(ON)) of 2.5mΩ at a gate-source voltage (VGS) of 10V, ensuring efficient power switching operations. Moreover, the transistor exhibits fast switching characteristics and reverse body recovery, enabling swift and efficient transitions between on and off states.

The JY14M is fully characterized with respect to avalanche voltage and current, ensuring reliable performance even under extreme conditions. Furthermore, its excellent package design promotes effective heat dissipation, enhancing the overall reliability and longevity of the device.

To summarize, the JY14M power field transistor leverages advanced trench processing techniques to achieve a high cell density and reduce on-resistance, along with a remarkable repetitive avalanche rating. These features make it an extremely efficient and reliable choice for power switching applications and a wide range of other applications where dependable performance is crucial.

Click here get datasheet.

Features

● 40V/200A, RDS(ON) =2.5mΩ@VGS=10V
● Fast switching and reverse body recovery
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation

Applications

● Switching application
● Hard switched and high frequency circuits
● Power Management for Inverter Systems

PIN Description

TO220-3 Package Outline

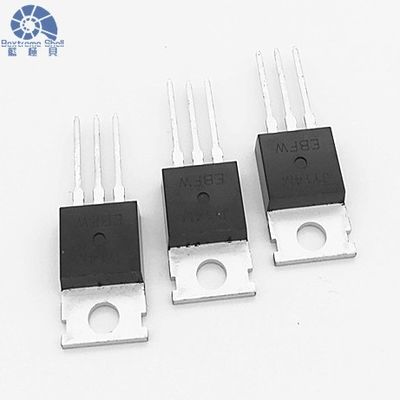

Pictures
