| MOQ: | 6pcs |
| Price: | Negotiable |
| Standard Packaging: | suite for export |
| Delivery Period: | as confirmed |
| Payment Method: | L/C, T/T, Western Union,PAYPAL |
| Supply Capacity: | 10000PCS/Month |

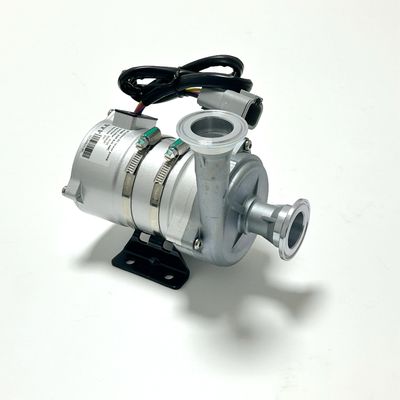

Pump Major Parameters
Model No.:OWP-BL43-440C
Power Input:24VDC(18-32VDC)
Rated power:400W
Rated Flow rate :3000L/H @ H=20M
Max Flow:4600L/H
Max Lift Head:23M
Features
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection
◆Single-stage Centrifugal pump
◆Magnetic force transmission (shield pump structure)
◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.
◆With wide range operating temperature
◆Speed controlling
Driving device (Including motor)
◆Driving electromagnet: nylon plastic capsulated magnet
◆Screws and nuts: SUS 304 stainless steel
Pump Applications
EV motor cooling
EV motor controller cooling
Turbocharger intercooler pump
EV battery thermal management
High-Power EV charging station cooling
Battery energy storage cooling pump
Fuel cell cooling pump
water pump large-scale GPU cooling
Industrial cooling system
Immersion cooling
Communication base station cooling
Supercomputer cooling
BLDC pumps for Electric vehicle BMS battery management system
Coolant pump for EV charging cooling
EWP For Liquid-cooled supercharger
Glycol circulation booster
Fluorinated liquid pump
Electric pump for boosting electric insulating oil
Electric coolant pump for immersion-cooled of data center
Electric truck coolant pump 5hp water pump
Automotive Water Pump for Antifreeze Circulating
■ System pressure
-0.5-3.0 Bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
■ Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the service life)
Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution
Medium temperature:
Working long hours guaranteed
-40℃ to +85℃ (-40°F to + 185°F)
Outlet diameter: Flange nozzle
Speed regulation:Yes
Fault Feedback signal:Yes
IP Grade:IP68
Noise control:≤60dB
Service life:＞20000hours
Weight: 2200g
Driving device (Including motor)
◆Driving electromagnet: nylon plastic capsulated magnet
◆Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
◆Waterproof based on IP67 rating (en60529)
◆Connector model: AMPHENOL C-ATP04-4P-PDO1NFK (matched Plug 从!PHENOL C-ATP06-4S-RDO1NFK)
◆Nozzle size: Flange nozzle
◆Motor winding frame :PPA GF
◆Pump housing: Aluminum
◆Bracket: Steel
◆Bracket hoop: Rubber
Performance Curve
Pump overall size
Video
Video
Video
|
|
