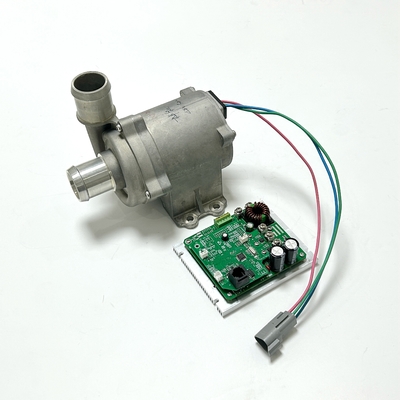

48V Electric Coolant Pump For Thermal Management In Energy Storage System

MOQ: 1
Price: Negotiable
Standard Packaging: PE bag+carton
Delivery Period: 20days
Payment Method: L/C, T/T
Supply Capacity: 1000pcs/month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
BEXTREMESHELL
Model Number
SEPA650LB-1
Working Voltage:
30-60V
Performance:
Q=120L/min @H=18m
Nozzle Size:
38mm
Type:
Single Stage Centrifugal Pump
Speed Control:
PWM, Analog Voltage
Fault Beedback:
Yes
Weight:
2.7kg
Highlight:

48V Electric Coolant Pump

,

Thermal Management Electric Coolant Pump

,

Energy Storage System Electric Coolant Pump

Product Description
Pump Major Parameters


48V Electric Coolant Pump For Thermal Management In Energy Storage System 0
Model No.:SEPA650LB-1
Power Input:30-60VDC
Rated power:700W
Rated Flow rate :120L/min @ H=18M
Max Flow:180L/min
Max Lift Head:23M
---------------------------------------------------------------------------
Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution
Medium temperature:
Working long hours guaranteed
-40℃ to +85℃ (-40°F to + 185°F)
Nozzle: 38mm
Speed Control:Yes
Fault Feedback signal:Yes
IP Grade:IP67
Noise:≤65dB
Service life:＞40000hours
Weight: 2.7kg







Pump Applications


48V Electric Coolant Pump For Thermal Management In Energy Storage System 1
EV motor cooling
EV motor controller cooling
Turbocharger intercooler pump
EV battery thermal management
EV Liquid-cooled charging cabinet

48V Electric Coolant Pump For Thermal Management In Energy Storage System 2
Battery energy storage cooling pump Fuel cell cooling pump water pump large-scale GPU cooling High reliable



48V Electric Coolant Pump For Thermal Management In Energy Storage System 3
Industrial cooling system
Immersion cooling
Communication base station cooling
Supercomputer cooling


48V Electric Coolant Pump For Thermal Management In Energy Storage System 4

48V Electric Coolant Pump For Thermal Management In Energy Storage System 5

48V Electric Coolant Pump For Thermal Management In Energy Storage System 6

Electricized engineering vehicles IT fluid cooling solutions Battery thermal manage

Pump Appearance


48V Electric Coolant Pump For Thermal Management In Energy Storage System 7

48V Electric Coolant Pump For Thermal Management In Energy Storage System 8

48V Electric Coolant Pump For Thermal Management In Energy Storage System 9

48V Electric Coolant Pump For Thermal Management In Energy Storage System 10


48V Electric Coolant Pump For Thermal Management In Energy Storage System 11
Our clients come from 36 countires with high reputation in their fields.


Pump Advantages


48V Electric Coolant Pump For Thermal Management In Energy Storage System 12
Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.

48V Electric Coolant Pump For Thermal Management In Energy Storage System 13
Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others

48V Electric Coolant Pump For Thermal Management In Energy Storage System 14
Automotive grade electronic components makes our pump withstand extreme harsh operating environment


48V Electric Coolant Pump For Thermal Management In Energy Storage System 15
Software&Tools applied:
CFturbo/ANSYS FLUENT/Compile/Link/Debug/Simulate/Emulate/Program /SlikEdit, TestLink Software guidelines:Code Check；SVN:SW version control system (PVCS)；Test plan/tests (white box, black box)；Internal audit & release

Pump Technical parameter


48V Electric Coolant Pump For Thermal Management In Energy Storage System 16
Features
◆Single-stage Centrifugal pump
◆Magnetic force transmission (shield pump structure)
◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.
◆With wide range operating temperature
◆PWM signal speed controlling
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection


Driving device (Including motor)
◆Driving electromagnet: nylon plastic capsulated magnet
◆Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
◆Motor winding frame :PPA GF
◆Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment
◆Bracket: Integration into the pump body
◆Waterproof based on IP67 rating (en60529)
◆Connector model: AT04-3P-RD01-NFK
◆Nozzle:38mm

48V Electric Coolant Pump For Thermal Management In Energy Storage System 17


48V Electric Coolant Pump For Thermal Management In Energy Storage System 18
Performance
■Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the
service life)
■ System pressure
-99-400Kpa ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.



Category

Parameter

Remark

Product name

Electric Coolant Water Pump



Working voltage

30-60VDC



Minimum speed

2500-5500rpm



Maximum power

700W

Continuous operation

Rate flow/lift

@Flow 120L/min, Lift≥18m



Maximum lift

23m



Maximum flow

180L/min



Rated voltage

48VDC



Leakage amount

Pressure:400KPa,Leakage≤1ml/min





Category

Category

Remark

Weight

2.7Kg



Service life

40000h(rated power)



Product level

IP67



Sealing requirements

The water pump can withstand the system pressure for: -99kPa～+400kPa



Environmental requirements

Fit GB/T 30512-2014



Rated point noise

≤65dBA (The test location is 1m away from the pump)

Standard IEC 61672- 1:2013

Cleanliness level

Mass limit of particulate matter in the medium chamber (wet surface) of the water pump 1.276mg/1000cm2 (no more than 5mg per
piece)

ISO 16232 Particle cleanliness level

Usage

Fuel cell pack cooling, electric motor cooling; Energy storage cabinet cooling, engine cooling



Insulating rating

Level F




Pump overall size

48V Electric Coolant Pump For Thermal Management In Energy Storage System 19

Manufacturing Technique

we have 5 semi-automatic pump production lines in dust-free workshops


48V Electric Coolant Pump For Thermal Management In Energy Storage System 20


48V Electric Coolant Pump For Thermal Management In Energy Storage System 21

48V Electric Coolant Pump For Thermal Management In Energy Storage System 22

48V Electric Coolant Pump For Thermal Management In Energy Storage System 23

48V Electric Coolant Pump For Thermal Management In Energy Storage System 24

1000m² testing room, UL certified lab and R&D deparment with 175 sets testing machines for pump design and development verification,durability testing,aging testing,performance testing.


48V Electric Coolant Pump For Thermal Management In Energy Storage System 25

48V Electric Coolant Pump For Thermal Management In Energy Storage System 26

48V Electric Coolant Pump For Thermal Management In Energy Storage System 27

48V Electric Coolant Pump For Thermal Management In Energy Storage System 28

Verify capabilities and equipments
Over 50 typical testings performed according to automotive standards


48V Electric Coolant Pump For Thermal Management In Energy Storage System 29


48V Electric Coolant Pump For Thermal Management In Energy Storage System 30


48V Electric Coolant Pump For Thermal Management In Energy Storage System 31





48V Electric Coolant Pump For Thermal Management In Energy Storage System 32
