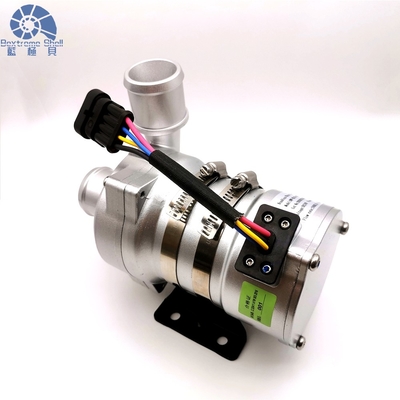

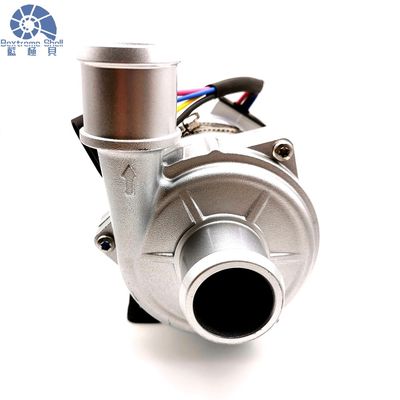

This electronic water pump with compact structure,small size,easy installation and high efficiency, is single-stage centrifugal water pumps.The body of the water pump is constructed of high quality die-cast aluminum alloy.BLDC motor inside allows our pumps operate continuously without maintenance and is trusted by our customers for its nice quality long service life and low maintenance cost.Bextreme Shell OWP-BL43-408T SERIES with PWM speed control.Get technical data please click here
Bextreme Shell OWP-BL43-408T SERIES brushless DC water pump
Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump PWM control/Fault diagnosis
Pump head housing: Die casting aluminum alloys
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
EMC: Grade 3
Noise:≤61dB
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless DC motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..
Bracket: steel
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1 (matched Plug AMP282088-1)
Nozzle diameter:38mm (1.5 inch)
|
Working Voltage (VDC) |
Rated power (W) |
Rated flow (L/H) |
Dimensions (mm) |
Weight (g) |
|
18V-32V(24V) |
240W |
Q=2400L/H, H=17m |
185*90*155 |
2200g |
Connector model and the corresponding electrical properties(as shown below)
|
AMP282106-1 (matched Plug AMP282088-1) |
1( Black) | 2( Yellow) | 3(Blue) | 4(Red) |
|
GND |
Fault feedback |
PWM |
+24V |
| Duty Cycle | Description |
Remark: 1:PWM duty cycle metrical error ±2% 2:PWM voltage:24VDC, frequency:50-1000Hz 3: Recommended PWM frequency:500Hz 4: Recommended 0% duty as PWM disconnect |
| 0%≤duty≤10% | PWM mode (stop) | |
| 10%≤duty≤55% | PWM mode (Min speed) | |
| 56%≤duty≤90% | PWM mode (Linear speed control range) | |
| 90%≤duty≤100% | PWM mode (max speed limit) |
Recommended Wire size is (Based on 3% voltage drop)
* The length of the wire means the distance from pump to the battery
| Wire dia. | The longest wire used * |
| 24V | |
| 1.5 mm² | 16m |
| 2.5 mm² | 25m |
| 3 mm² | 31m |
| 4 mm² | 40m |
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
Medium liquid: liquid mixture (Water with below 60% glycol)
Rated DC24V water pump, workable range 18V - 32V
Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the BLDC motor, the pump can not be exposed to thermal radiation ambient.
■ Mounting instructionOWP-BL43-408T series pumps are centrifugal pumps which require pre-filled,
The pump installed in the lowest position of the system to ensure that the impeller is always immersed in the liquid, or pre-filled the pump before power on .
1:This electric water Pump should not be dry-running, even though it can dry-running for 15 minutes (after 15 minutes dry-running, it will automatically stop), Dry running will makes noise, also increasing abrasion to the shaft and shaft sleeve.
2:Use the recommended diameter pipe connecting the pump inlet, if you use a smaller diameter hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the pump through the pipeline, it will make the pump performance degradation, and also the air bubbles make damage to the pump.
3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on the outlet port).
4: The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed vertically, the outlet port should be upward .
5:In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should be vertical or in the upper of the impeller. (see figure 1 )
6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).
7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid medium .
Figure 1 Figure 2
Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and cooling circulation system.
