| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | PE bag+carton |
| Delivery Period: | 5-10days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 10000 sets per month |
The OWP-BL43-300 automotive water pump offers exceptional performance and reliability. Its high efficiency brushless DC motor ensures low power consumption and increased energy efficiency. With a rated head of 6 meters and a flow rate of 6000 L/H, this centrifugal pump is capable of handling demanding water circulation tasks.
One of the standout features of this water pump is its dry running protection, which safeguards the pump from damage in the absence of water. The magnetic force transmission mechanism ensures smooth and efficient operation. The product also offers reverse polarity protection, overvoltage protection, and constant flow control, making it safe and user-friendly.
Additionally, the OWP-BL43-300 incorporates various protective measures including over current protection, overload protection, and over-temperature protection. These features contribute to the longevity and overall durability of the water pump.
Furthermore, the OWP-BL43-300 operates reliably across a wide range of temperatures, making it suitable for use in various automotive applications. With its combination of efficiency, safety features, and robust construction, this water pump is a reliable choice for automotive water circulation needs.
Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and cooling circulation system.

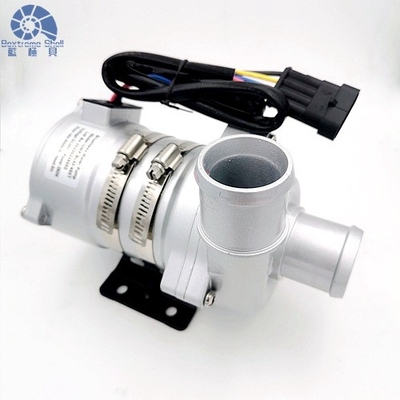

The Bextreme Shell OWP-BL43-300 serirs electric water pumps with compact structure,small size,easy installation and high efficiency, is centrifugal water pumps.The body of the water pump is constructed of high quality die-cast aluminum alloy.
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..
Bracket: Steel base
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282104-1 (matched Plug AMP282080-1)
Nozzle diameter:40mm (1.5 inch)
Pump head housing: Aluminum alloy
Impeller: PPS+GF Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
|
Working Voltage (VDC) |
Rated power |
Rated flow (L/H) |
Dimensions (mm) |
Weight (g) |
|
18V-32V(24V) |
130W |
Q=5000L/H, H≥5m |
195*90*145 |
1950g |
|
200W |
Q=6000L/H, H≥6m |
|||
|
250W |
Q=6000L/H, H≥8m |
Connector model and the corresponding electrical properties (as shown below):
|
AMP282104-1 (matched Plug AMP282080-1) |
1 | 2 |
| +24V DC | GND |
■ Mounting instruction
OWP-BL43-300 series pumps are centrifugal pumps which require pre-filled,
The pump installed in the lowest position of the system to ensure that the impeller is always immersed in the liquid, or pre-filled the pump before power on .
1: Pump should not be dry-running, even though it can dry-running for 15 minutes (after 15 minutes dry-running, it will automatically stop), Dry running will makes noise, also increasing abrasion to the shaft and shaft sleeve.
2:Use the recommended diameter pipe connecting the pump inlet, if you use a smaller diameter hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the pump through the pipeline, it will make the pump performance degradation, and also the air bubbles make damage to the pump.
3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on the outlet port).
4: The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed vertically, the outlet port should be upward .
5:In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should be vertical or in the upper of the impeller. (see figure 1 )
6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).
7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid medium .
■ Attentions
1.This electric water pump Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2.The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
3.Please use this BLDC water pump far from the dusty environment, the dust is harmful to reduce the service life.
4.Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
1.Q:Can I place a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
2.What about the lead time
It is spending 30 days generally after you making the payment.
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. How to ship to us?
We will ship the goods to you according to the DHL or UPS or FEDEX etc
5. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
