| MOQ: | 5 sets |
| Price: | Negotiable |
| Payment Method: | L/C, T/T,L/C |

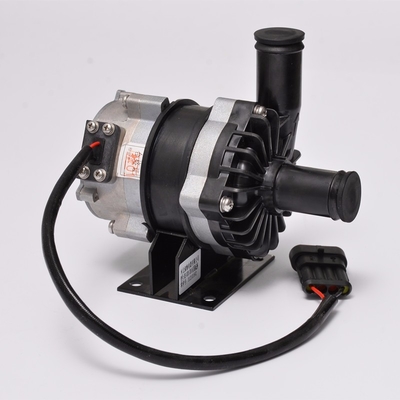

Large Flow Dish-Washer Water Motor Brushless DC Water Circulation Pump
Features
1. Brushless motor, long life span； Expected life span is about 20000 hours.
2. Low noise: ≤45dB, far from 1meter distance.
3. Duty work: The pump can sustain heavy-duty work for a whole day. Continuous operation.
4. Small size, lightweight, easy to install；
5. Epoxy potting, IP68 waterproof rating；
6. Reliable Performance: Works quietly; Energy saving; High efficiency; Environment protection;
7. Durable permanent magnetic rotor and high density(stainless steel or zirconia)optional shaft；
Customizable Functions
1. 0~5V speed control;
2. FG signal wire;
3. PWM speed control;
4. PV solar powered
5. Submersible(water tempreture≤50℃);
6. High temperature customized(≥100℃);
7. Protective functions (Polarity reverse/over-voltage protection/waterless protection/rotor lock protection).
| No. | Items | Parameter |
| 1 |
Medium temperature range |
Max 40% Glycol -40℃～85℃ |
| 2 | Flow & Head | Flow Q=6000L/H, Head H≥2M |
| 3 | Noise | ≤60dB |
| 4 | Rated Voltage | DC24V |
| 5 | Operating Voltage | DC18～32V |
| 6 | Max Current | ≤5.5A |
| 7 | Power | 120W±10W |
| 8 | IP Grade | IP67 |
| 9 | Service life | ≥20000h |
| 10 | Net Weight | 1.7kg |
Advantages of our electric water pump
*Brushless Motor assembly efficiency max reach to 85%(normal level 70%),controller driving efficiency max reach to 97%
*Shielded brushless motor,long service life ,low power consumption,compact size, high reliability
*Strong pump development capability , professional Ansys Fluent simulation calculation offering high-efficiency customized development.
*Sinusoidal wave controlling circuit ,EMC proved, Automotive grade electronic components .
*Automatically detect no-load/semi-load state and protective self stop, automatically detect the plugging state and protective self stop, detection overload and protective deceleration operation, positive and negative pole reverse protection function.
*Shielded - type inner - rotor structure , IP grade IP67 , insulation grade F.
Structure of electric water pump
Simulation calculation of hydraulic design of electric pump
Electric water pump design principle
Electric water pump design verification - electromagnetic theory design verification
Design verification of electric pump product design - test verification
Video
Video
Video
Video
Video
|
|
