| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | cartons+packing foams |
| Delivery Period: | 5-30days |
| Payment Method: | T/T,L/C |

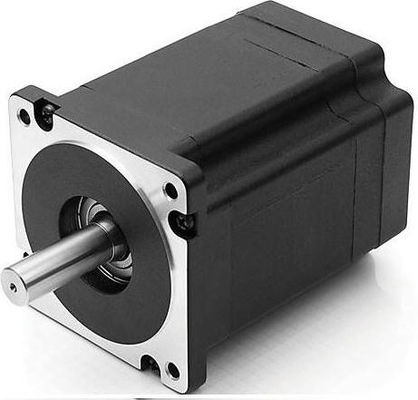

INDICATIONS OF THE MODELS:
OWM86BLS01
OWM: OWO Motor
86: Frame size 86mm
BLS: Square brushless dc motor
01: Series number
| Winding type | Delta |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.05mm |
| Radial play | 0.02mm@450g |
| End play | 0.08mm@450g |
| Max.radial force | 220N @ 20mm from the flange |
| Max.axial force | 60N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩMin., 500VDC |
ELECTRIC CONNECTION:
| Lead No. | Lead color | Lead gauge | Function | Description |
| 1 | Red |
UL1007 26AWG |
Vcc | Supply voltage for hall |
| 2 | Blue | HALL A | ||
| 3 | Green | HALL B | ||
| 4 | White | HALL C | ||
| 5 | Black | GND | Ground for hall sensors | |
| 6 | Yellow&Y/W |
UL1007 20AWG |
Phase A | |
| 7 | Red& R/W | Phase B | ||
| 8 | Black&B/W | Phase C |
ELECTRONICAL SPECIFICATIONS:
| Model | OWM86BLS58 | OWM86BLS71 | OWM86BLS98 | OWM86BLS125 |
| Number of poles | 8 | 8 | 8 | 8 |
| Number of phase | 3 | 3 | 3 | 3 |
| Rated voltage VDC | 48 | 48 | 48 | 48 |
| Rated speed RPM | 3000 | 3000 | 3000 | 3000 |
| Rated torque N.m | 0.35 | 0.7 | 1.4 | 2.1 |
| Rated power W | 110 | 220 | 440 | 660 |
| Peak torque N.m | 1.05 | 2.1 | 4.2 | 6.3 |
| Peak current A | 11 | 19 | 33 | 55 |
| Line to line resistance ohms | 1.05 | 0.36 | 0.2 | 0.16 |
| Line to line inductance mH | 2.2 | 1.05 | 0.48 | 0.3 |
| Torque constant Nm/A | 0.1 | 0.11 | 0.13 | 0.11 |
| Back E.M.F | 10.5 | 11.5 | 13.5 | 11.5 |
| Rotor inertia g.cm2 | 400 | 800 | 1600 | 2400 |
| Body length(L) mm | 58 | 71 | 98 | 125 |
| Weight Kg | 1.5 | 1.85 | 2.6 | 4 |
Above items are standard products,we can design and make as customer's request.
86mm series BLDC motor can be widely used with industrial automation, pump valves, solar equipment
|
|
