| MOQ: | 5 |
| Price: | Negotiable |
| Standard Packaging: | cartons+packing foams |
| Delivery Period: | 5-30days |
| Payment Method: | T/T,L/C |
Features:

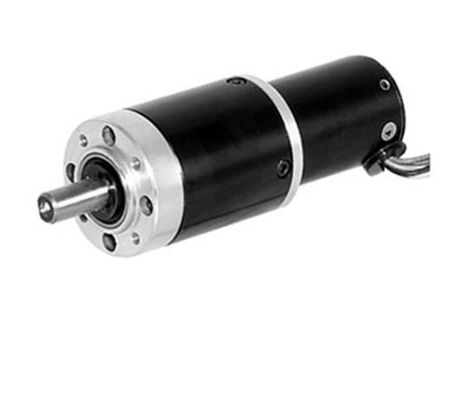

Planetary gearbox, stable operation, low noise, high efficiency, long service life
◆Motor SPECIFICATIONS:
| Motor Name | OWM42RBL60-2420-48JXG200K | OWM42RBL60-2430-48JXG200K | ||||||
| Number of poles | 8 | 8 | ||||||
| Number of phase | 3 | 3 | ||||||
| Rated Voltage (VDC) | 24 | 24 | ||||||
| Rated Speed (RPM) | 1400 | 2100 | ||||||
| Rated Torque (N.m) | 0.04 | 0.05 | ||||||
| Rated Power (W) | 5.8 | 11 | ||||||
| Rated Current (A) | 0.5 | 0.85 | ||||||
| Peak Current (A) | 1.5 | 2.6 | ||||||
| Line to line Resistance (Ohms) | 11.9 | 6 | ||||||
| Line to line Inductance (mH) | 15 | 6.4 | ||||||
◆Gearbox Specifications:
| Reduction Ratio | 316 | 403 | 515 | 944 | 1206 | 1540 | ||
| Number of Gear Trains | 4 | 4 | 4 | 5 | 5 | 5 | ||
| Length of Gear Box | 65 | 64.5 | 64.5 | 74.5 | 74.5 | 74.5 | ||
| Max.Permissible load in a short time Kg.cm | 300 | 300 | 300 | 600 | 600 | 600 | ||
| DK 42RBL60-2420-48JXG200K | ||||||||
| No-load Speed RPM | 6 | 4.96 | 3.88 | |||||
| Rated Speed RPM | 4 | 3.47 | 2.71 | |||||
| Rated Torque N.m | 13 | 16.1 | 20.6 | |||||
| DK 42RBL60-2430-48JXG200K | ||||||||
| No-load Speed RPM | 3.17 | 2.48 | 1.94 | |||||
| Rated Speed RPM | 2.22 | 1.74 | 1.36 | |||||
| Rated Torque N.m | 47.2 | 60.3 | 75.2 | |||||
◆DIMENSIONS:
Application:
Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
Scientific instrument industry: Environment detector, mine gas detector
Industrial automation industry: Automatic door, electronic component
Vehicle Industry: Engineering car air filter
Household appliance industry: Hair dryer
Others: Optical correction industry, etc
|
|
