20A 24VDC 4000rpm 0.25N M 3 Phase 8 Pole Bldc Motor

20A 24VDC 4000rpm 0.25N M 3 Phase 8 Pole Bldc Motor

MOQ: 5
Price: Negotiable
Standard Packaging: cartons+packing foams
Delivery Period: 5-30days
Payment Method: T/T,L/C
Detail Information
Place of Origin
China
Brand Name
OWO
Certification
CE, Rohs, UL
Model Number
OWM42BLS01/02/03/04
Type:
Brushless Dc Motor
Peak Current:
20A
Phase:
3
Number Of Poles:
8
Output Power:
80W
Speed:
5000rpm
Diameter:
42mm
Shape:
Square
Voltage:
24VDC
Highlight:

8 pole bldc motor

,

8 pole 3 phase brushless dc motor

,

8 pole 3 phase bldc motor

Product Description

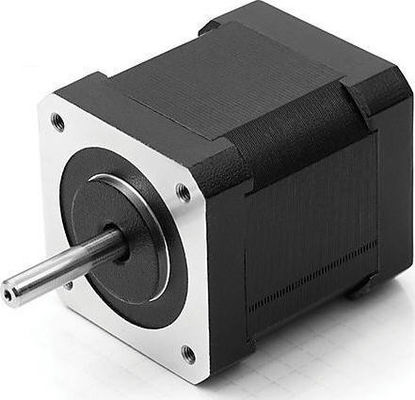

42mm Square Brushless DC Motor

OWM 42BLS SERIES                          20A 24VDC 4000rpm 0.25N M 3 Phase 8 Pole Bldc Motor 0

INDICATIONS OF THE MODELS
OWM  42  BLS  01

OWM: OWO motor
    42:   Motor Frame size:mm
            BLS: Square   Brushless motor

                01:         Series No.


◆GENERAL SPECIFICATIONS

Winding typeTriangle
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max. radial force28N @ 10mm from the flange
Max. axial force10N
Insulation classClass B
Dielectric strength500VDC for one minute
Insulation resistance100MΩMin., 500VDC


◆ELECTRIC CONNECTION

Lead No.Lead colorLead gaugeFunctionDescription
1RedUL1007 26AWGVccSupply voltage for hall sensors
2BlueHall A
3GreenHall B
4WhiteHall C
5BlackGNDGround for hall sensors
6YellowUL1007 20AWGPhase A
7RedPhase B
8BlackPhase C


◆ELECTRICAL SPECIFICATIONS

ModelOWM42BLS01OWM42BLS02OWM42BLS03OWM42BLS04
Number of poles8888
Number of phase3333
Rated voltage VDC24242424
Rated speed RPM4000400040004000
Continuous stall torque N.m0.0750.150.220.3
Rated torque N.m0.06250.1250.1850.25
Rated power W2652.577.5105
Peak torque N.m0.190.380.560.75
Peak current A5.410.615.520
Line to line resistance ohms1.80.80.550.28
Line to line inductance mH2.61.20.80.54
Torque constant Nm/A0.0350.03550.0360.0376
Back E.M.F V/KRPM3.663.723.763.94
Rotor inertia g.cm224487296
Body length mm416181100
Mass Kg0.30.450.650.8


DIMENSIONS:
42mm Square Flange Brushless Motor using for Electronic components, automatic doors
Related Names:
Electric Hair Drier Used Motor without Brush | Brushless Electric Device for Household Elevator | Smooth Running Electric Device without Brush




Application:
Industrial automation industry: Electronic components, automatic doors
Vehicle Industry: Engineering car air filter
Household appliance industry: Hair dryer, mower
Medical industry: Biochemical analyzer, hematology analyzer, centrifuge
Scientific instrument industry: mine gas detector, coal quality analytical instruments, environment detector, precision computer embedded devices
Others: Optical correction industry, etc.
