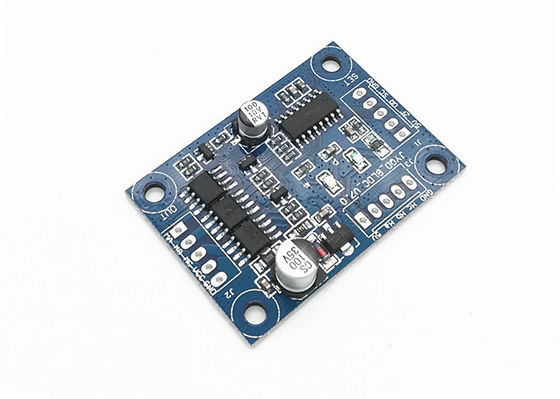

Rotating Direction Control Ports 12 to 24V Hall BLDC Driver Board

MOQ: 1 set
Price: Negotiable
Standard Packaging: PE bag+ carton
Delivery Period: 5-10 days
Payment Method: T/T,L/C,Paypal
Supply Capacity: 1000sets/day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JUYI
Model Number
JYQD-V7.0
Working Voltage:
12-24VDC
Working Current:
2A
PWM Speed Control:
Duty Cycle 0-100% (1-20KHZ)
Speed Pulse Signal Output:
YES
Error LED:
Yes
Max Current:
2A
Highlight:

12 24V BLDC Driver Board

,

hall bldc driver board

,

hall bldc motor controllers

Product Description
JYQD-V7.0 ,12V/24VDC DC,2A working current BLDC motor driver for Hall effect BLDC motor

Model:JYQD-V7.0
Operating temperature :-20—85℃
Operating voltage: 12V/24V
Max current :3A
Continuous operating current:2A
PWM speed regulation(1-20khz) :duty cycle 0-100%
Analog voltage speed regulation :0-5V
Error LED:Yes



Application guidelines
1. Confirm that the voltage and power parameters of the motor not exceed the range as specified.
2. Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequence are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
3. JYQD-V7.0 is driver board without housing and heatsink, it can drive the motor below 36 watt without any heatsink, but needs normal ventilation.
4. The 5V output port on the drive board is forbidden to connect external power equipment. It is only applicable to external potentiometer or switch for speed adjustment, commutation and enabling operation
Rotating Direction Control Ports 12 to 24V Hall BLDC Driver Board 0

Rotating Direction Control Ports 12 to 24V Hall BLDC Driver Board 1

Wiring diagram
Rotating Direction Control Ports 12 to 24V Hall BLDC Driver Board 2


1. Control port

5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation
Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
SC—Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.
GND—Used for Drive board internal control

2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
GND----DC-
VCC----DC +

3:Hall sensor port
Ha--- Hall a
Hb---Hall b
Hc---Hall c
GND---GND
5V---5V output

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
5. Control port distance: 2.54mm,Power port distance:2.54 mm
6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.


Dimensional drawing



Rotating Direction Control Ports 12 to 24V Hall BLDC Driver Board 3

DOWNLOAD JYQD-V7.0 USER MANUAL
